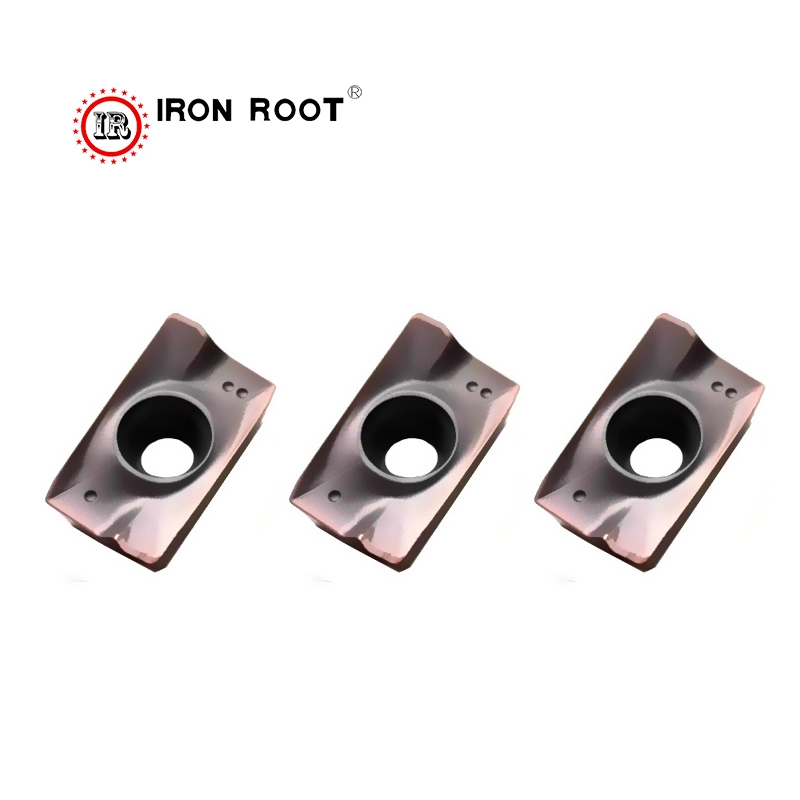

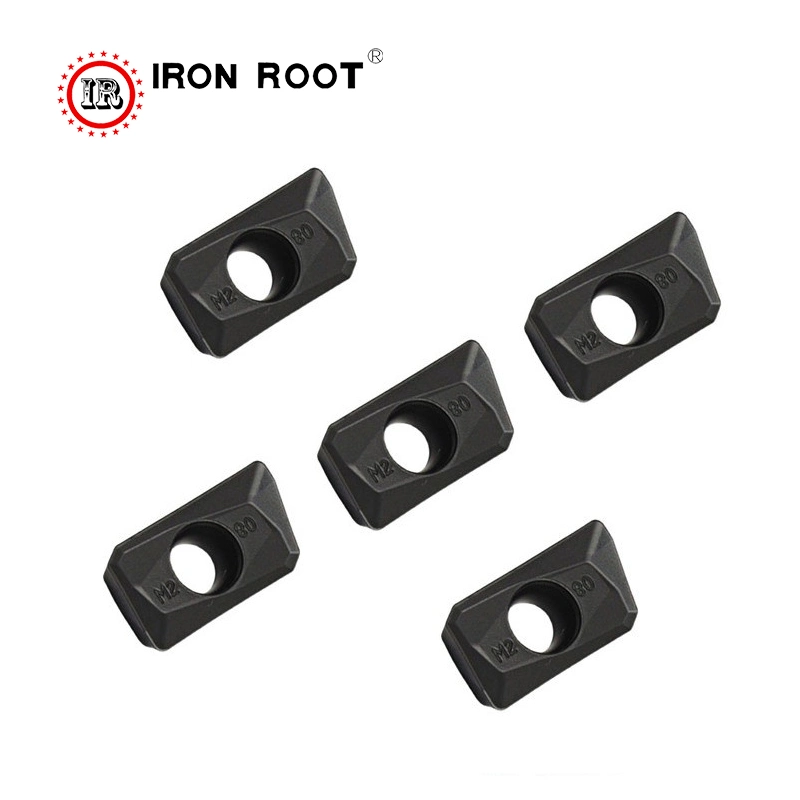

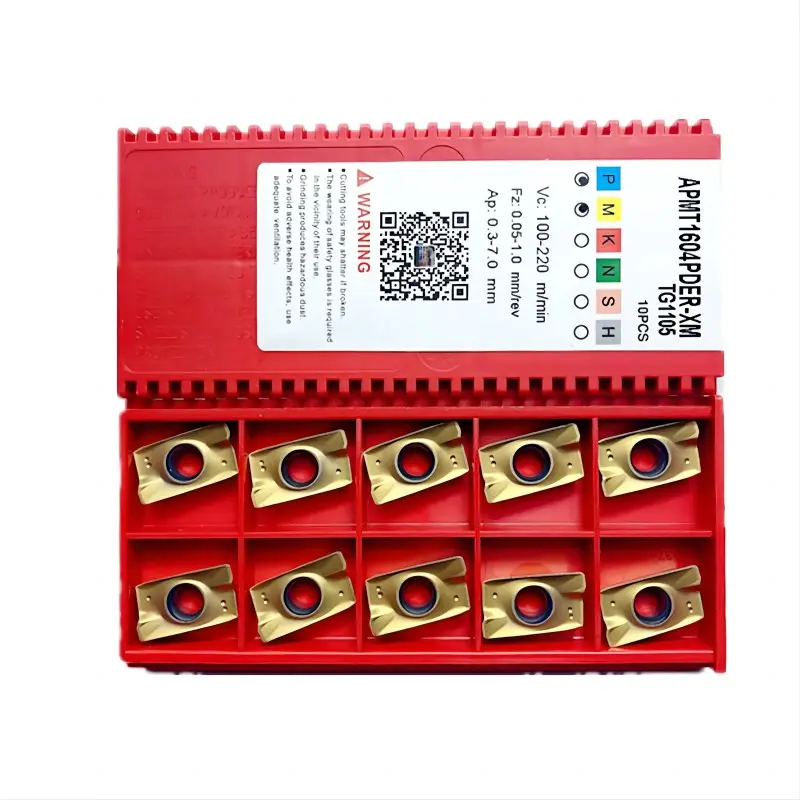

APMT Indexable Carbide Insert

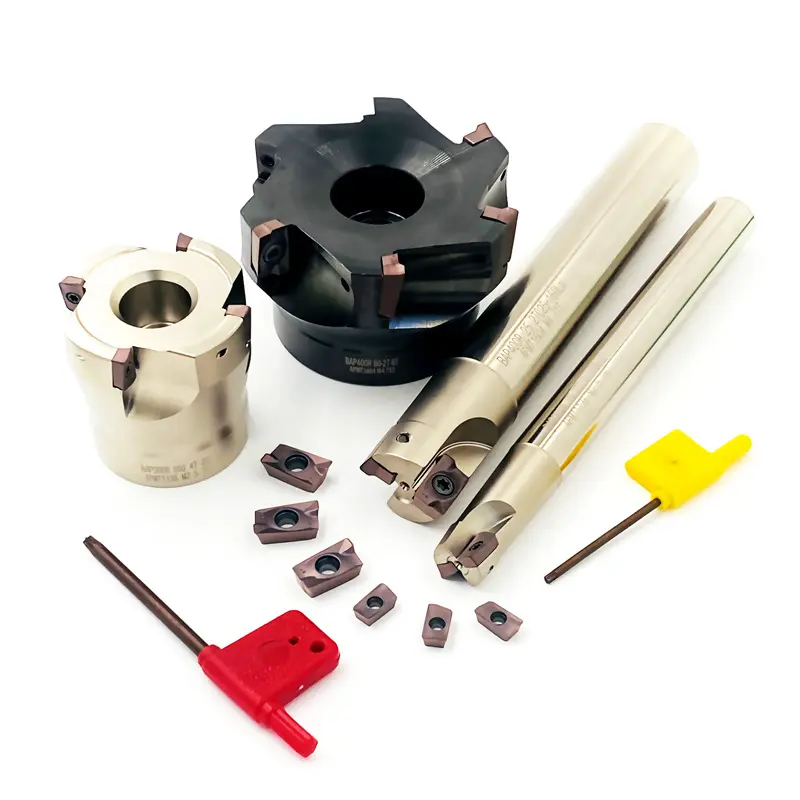

     APMT indexable carbide inserts are widely used for square shoulder endmilling and facemilling applications, featuring two cutting edges for smooth free cutting action. They come in various geometries for different machining requirements, such as light cutting with lowest cutting forces (PL), medium machining with broad application range (PM), roughing with highest edge security (PR), and high positive geometry for non-ferrous materials (AL). These inserts are known for their versatility and productivity, suitable for a range of workpiece materials including nonferrous metals, stainless steel, carbon steels, alloy steels, and tool steels.

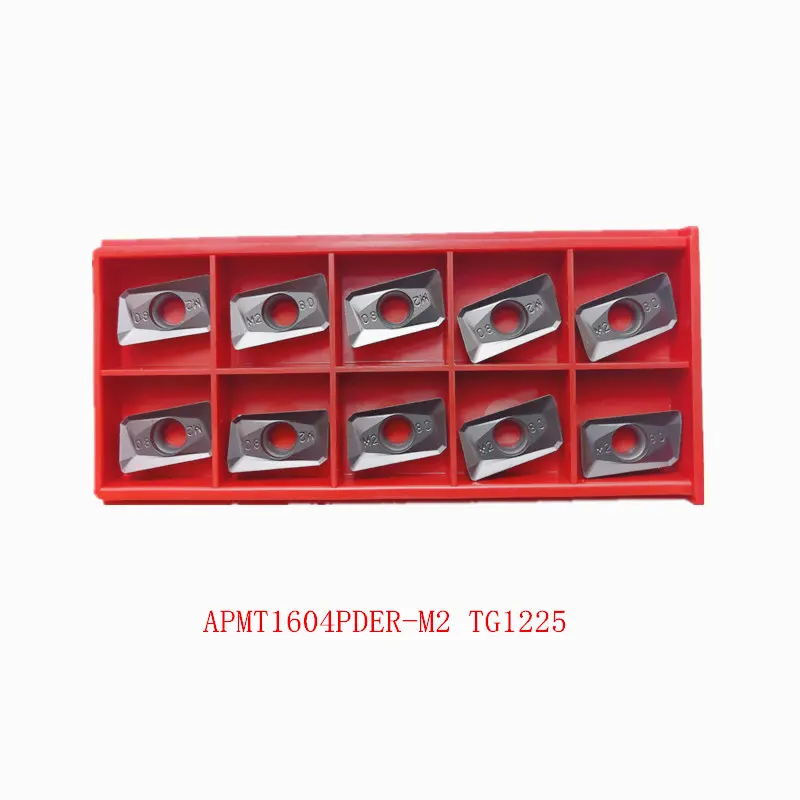

Grade：TG1225  Color：Gray   Hardness：P20-P35 M20-M35 K20-K35  Coating：PVD

Features：Microcrystalline carbide with optimized wear resistance and toughness combined with nanocrystalline TiALSiN coating with high bonding strength makes it have a wide range of performance. Recommended for general processing of steel and stainless steel.

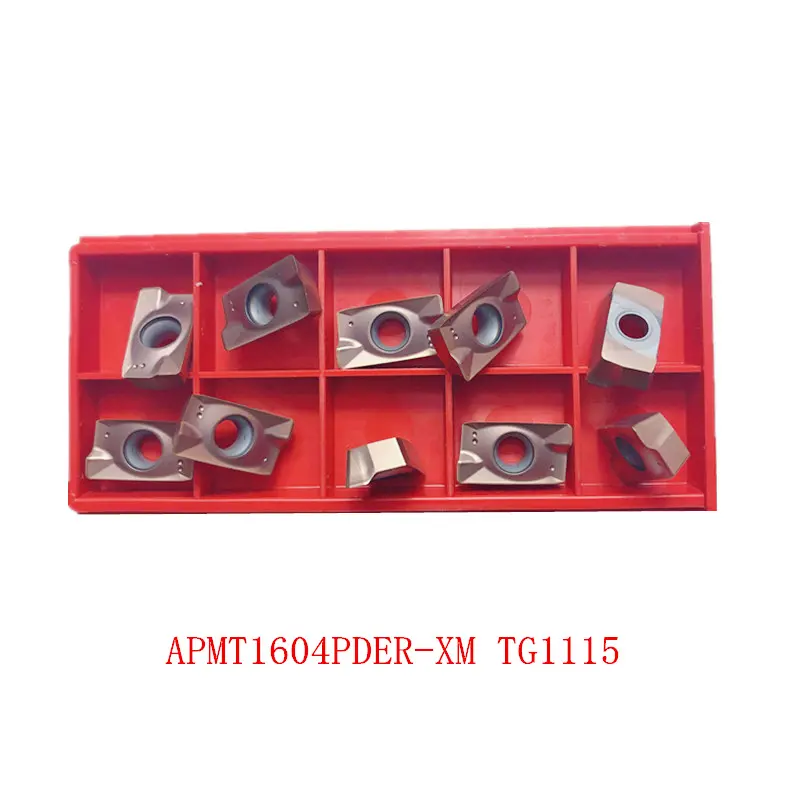

Grade：TG1115  Color：Purple  Hardness：P15-P25 M10-M25 K10-K25 Coating：PVD

Features：Use TiAiSiN PVD layer bronze color steel parts, process hard materials, steel stainless steel, for 28-50 degrees

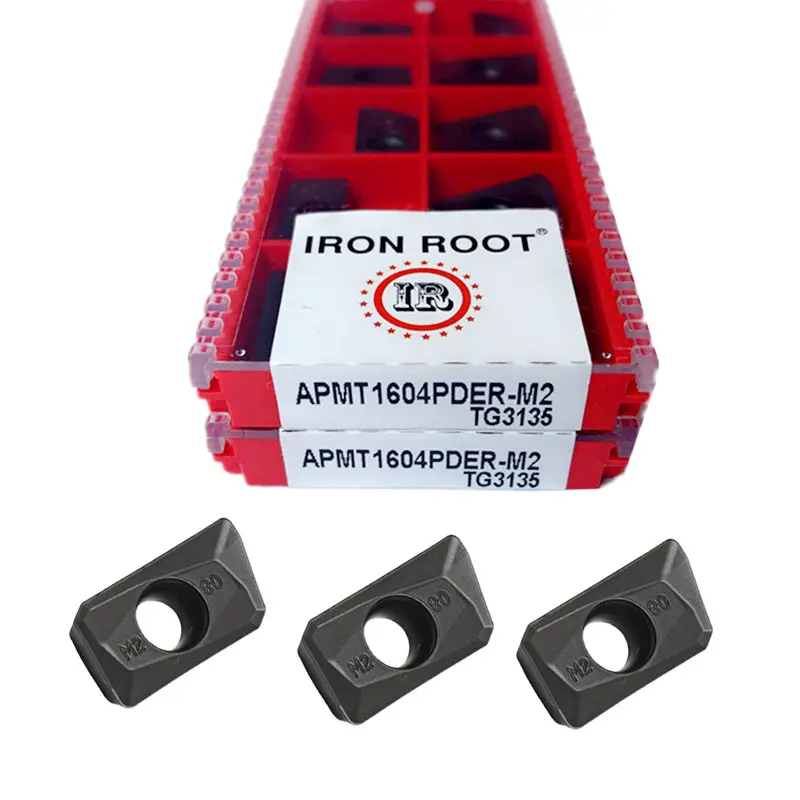

Grade：TG3135    Color：Black       Hardness：K10-K25    Coating：CVD

Features：CVD coating grade, (medium-thick AI2O3 + thick TiCN) coating combined with hard substrate, good anti-stripping performance, suitable for medium-high speed turning of cast iron, and can withstand slight intermittent cutting at medium speed. This grade is also highly versatile when used in cast iron milling.

Grade：TG3145    Color：Middle yellow hole       Hardness：K15-K35    Coating：CVD

Features：High toughness and high wear resistance substrate coated with medium-thick fiber crystal TiCN plus medium-thick a-Al2O3 coating, with good anti-stripping performance. Achieve efficient combination of wear resistance and toughness, suitable for a wide range of cast iron turning processes

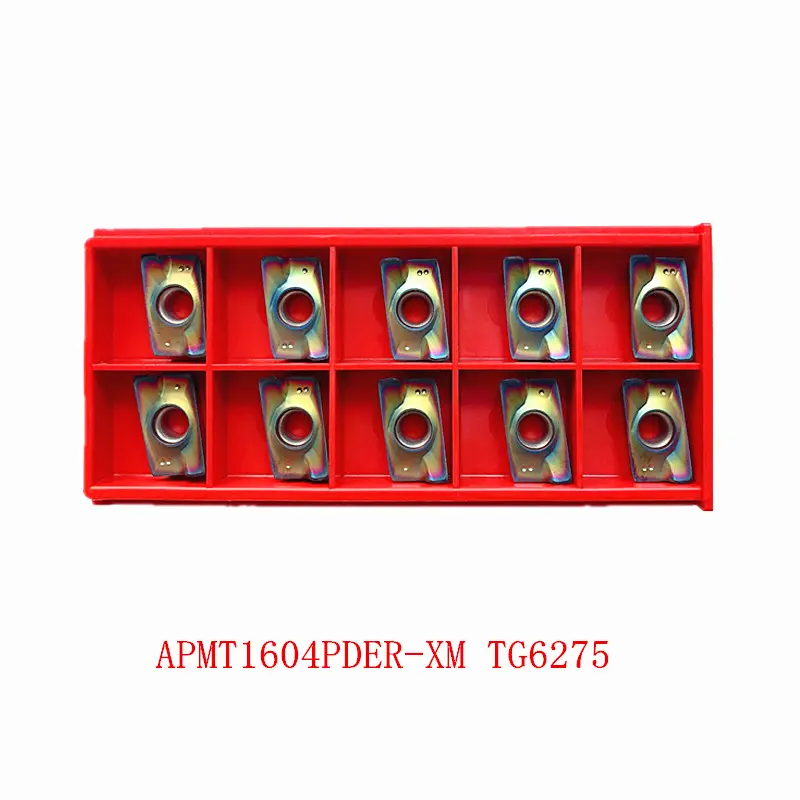

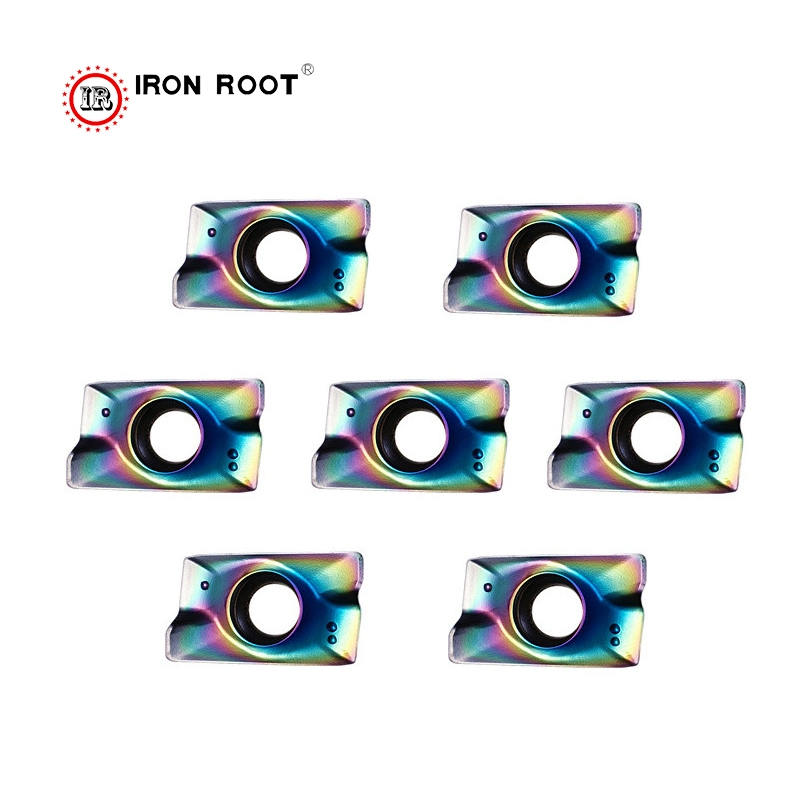

Grade：TG6275    Color：colors      Hardness：H15-H30  S15-S30   Coating：PVD

Features：Use AlCrN PVD layer to harden 40-55 degree steel parts, colorful processing 50 degree high hardness quenched steel
